Double Girder E.O.T. Cranes

About Double Girder E.O.T. Cranes



Double Girder E.O.T. Crane is one of the most common types of Electric overhead crane used or called Double Bridge Crane, which consist of parallel runways with a travelling bridge spanning the gap known as “Span”. As obvious from the name, Double Girder E.O.T. Crane is operated electrically, generally there is an operator cabin or a control pendant along with the E.O.T. Crane.

Double Girder E.O.T. Crane is commonly used in the refinement of steel and other metals such as copper and aluminium. At every step of the manufacturing process, until it leaves a factory as a finished product. The automobile industry uses overhead E.O.T. Cranes to handle raw materials.

Almost all Paper mills, Sugar mills, Plastic moulding industry, Power Plants, Fabrication units etc. use Double Girder E.O.T. Crane for regular maintenance and General usage needing movement of heavy equipment and material.

<

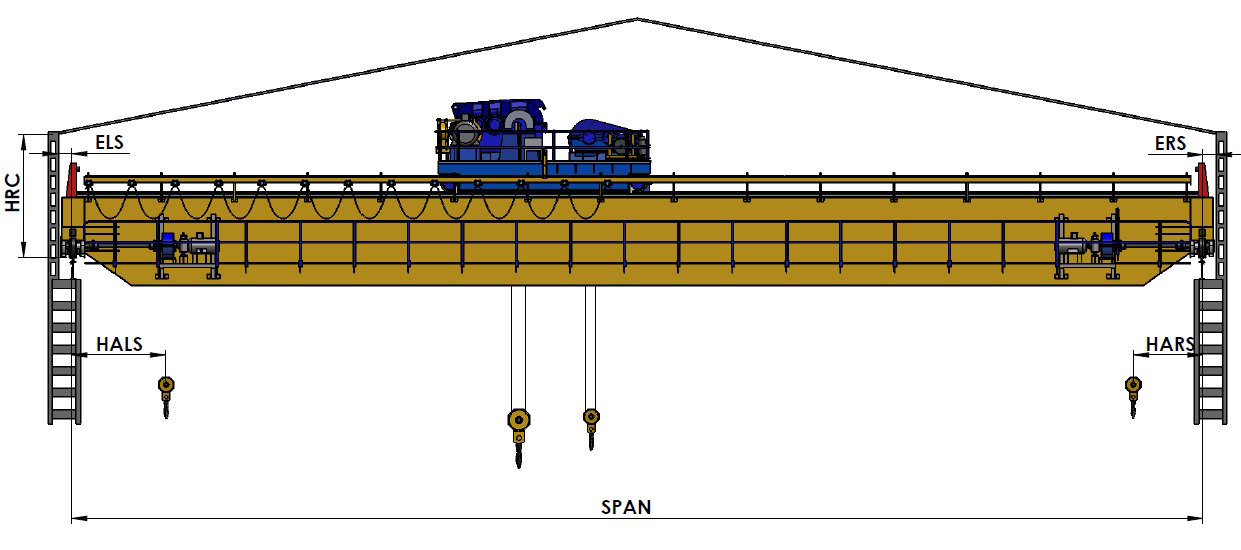

Capacity in Tons Span in Metres Head Room Clearance in mm HRC Hook approach in mm HALS Hook approach in mm HARS End Clearance in mm ELS/ERS Wheel Base in mm Total Wt. of Crane in tons (approx.) Wheel load of crane in tons (approx.)
5 10 1600 900 800 250 3800 10 5
15 1600 900 800 250 4000 13 6
20 1700 900 800 250 4200 15 7
7.5 10 1600 950 850 250 3800 13 7
15 1600 950 850 250 4000 17 8
20 1700 950 850 250 4200 19 9
10 10 1800 1000 900 250 4800 14 9
15 1800 1000 900 250 4900 17 10
20 1900 1000 900 250 5000 19 10
15 10 2000 1000 900 275 5000 19 12
15 2200 1000 900 275 5000 22 13
20 2300 1000 900 300 5200 25 14
20 15 2400 1100 900 300 5200 26 16
20 2500 1150 900 300 5300 30 17
25 15 2600 1150 1000 300 5200 33 19
20 2800 1150 1000 300 5400 38 20
30 15 2800 1200 1000 300 5200 30 22
20 3000 1200 1000 300 5400 37 25
35 15 3000 1250 1050 300 5200 33 25
20 3100 1250 1050 320 5400 38 27
40 15 3000 1300 1050 325 5300 36 28
20 3200 1300 1050 325 5000 40 30
50 15 3200 1400 1100 350 5200 41 33
20 3500 1400 1100 350 5500 47 36
60 15 3800 1600 1200 400 5600 60 43
20 4000 1600 1200 400 5800 72 47
80 15 4000 1900 1300 450 5600 78 56
20 4200 1900 1300 450 5800 90 61
100 15 4200 1900 1400 450 5800 95 69
20 1500 1900 1400 450 6000 111 75
125 15 4200 2000 1500 450 6100 120 84
20 4500 2000 1500 450 6100 130 90
150 15 4300 2000 1500 450 6200 145 101
20 4600 2100 1500 450 6200 155 108
